Special torque sensors for wrenches

Could be used in measuring torque of electrical，pneumatic ,cordless torque wrenches and multipliers. They could display the max torque value and real-time torque value. The devices make users possible to complete the calibration of torque wrenches and monitor the actual torque value during assembly. Output accuracy is in ±2%.

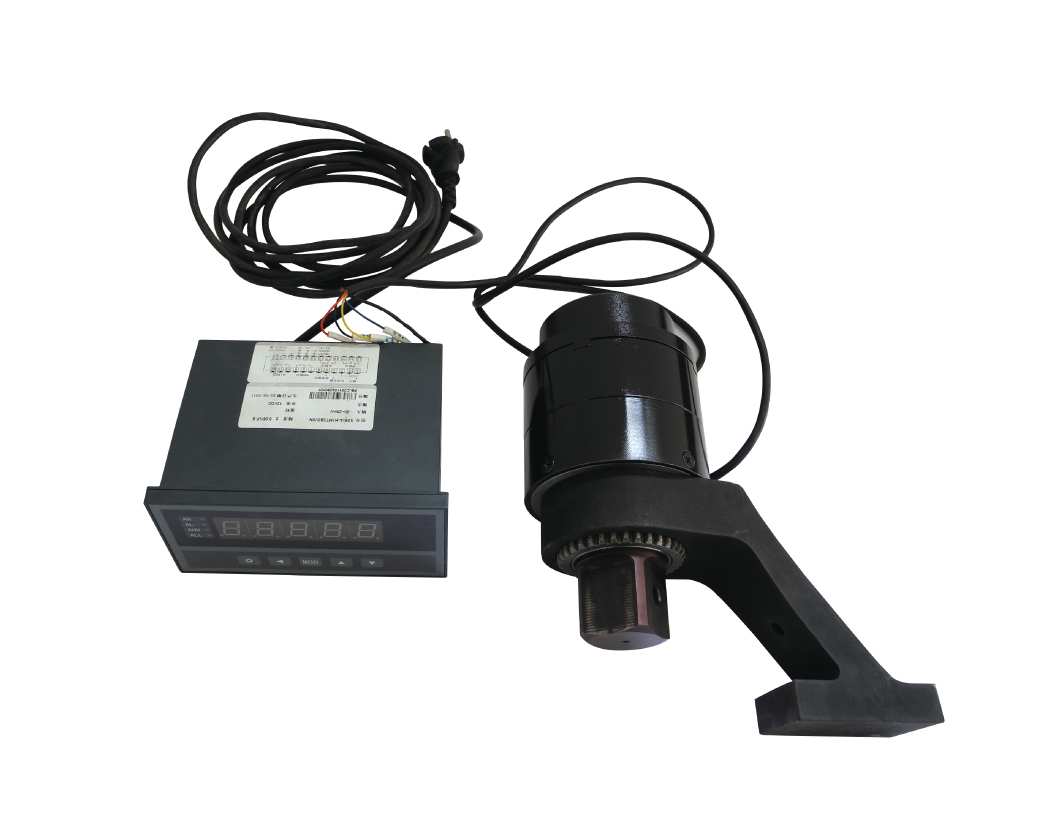

Supply scope: torque sensor, display instrument and electric cable












TS1 series torque sensors

Model	Torque(Nm)	Square C	D  (mm)	L (mm)	Weight*(kg)	Suitable wrenches
						Electric/Cordless	Pneumatic	Multiplier
TS1-10	1000	3/4"	88	186	3.7	ETW-08S/A,RMW-07		HM-08
TS1-20	2000	1"	88	186	3.9	ETW-12S/A,RMW-10/12	(Q)PTW-08,09,13,15,18,20S/A	HM-12
TS1-32	3200	1"	88	190	6.2	ETW-26S/A,RMW-25/32		HM-32
TS1-52	5200	1-1/2"	105	194	6.5	ETW-38S/A,RMW-40	(Q)PTW-32,36,40,45,48,51S/A	HM-42
TS1-70	7000	1-1/2"	130	202	10.8	ETW-60S/A	(Q)PTW-62,68S/A	HM-60
TS1-130	13000	1-1/2"	130	208	12.0	ETW-80,100,120S/A	QPTW-108,120S/A	HM-120

TS2 series torque sensors

Model	Torqu (Nm)	Square C	Diameter D(mm)	Long  L(mm)	Weight* (kg)	Suitable wrenches
						Electric	Pneumatic
TS2-10	1000	3/4"	76	160	1.9	ESW-04,08	PSW-06
TS2-20	2000	1"	76	163	2.0	ESW-12	PSW-10,15,20
